Assy Front Door Covers assembly for Crafter M6 Crafter3D

M6_A_0001 - Assy Front Door Covers

Version 1 (05-08-2025)

icon Crafter3D 3d printed items 3D printed parts:
12
icon Crafter3D Filament Total filament required:
24.86 grams
icon Crafter3D 3d printing time Total printing time:
2.69 hours
icon Crafter3D subassembly Sub-assemblies
0
icon Crafter3D 3d commercial items Commercial parts:
20
icon Crafter3D screws Screws:
35
icon Crafter3D electrical items Electrical Parts
0
<< Back
icon Crafter3D 3d printed items
Part Number Name Image Quantity Color Infill(%) Weight(g) Print Time(h) Print Material Version Last Updated

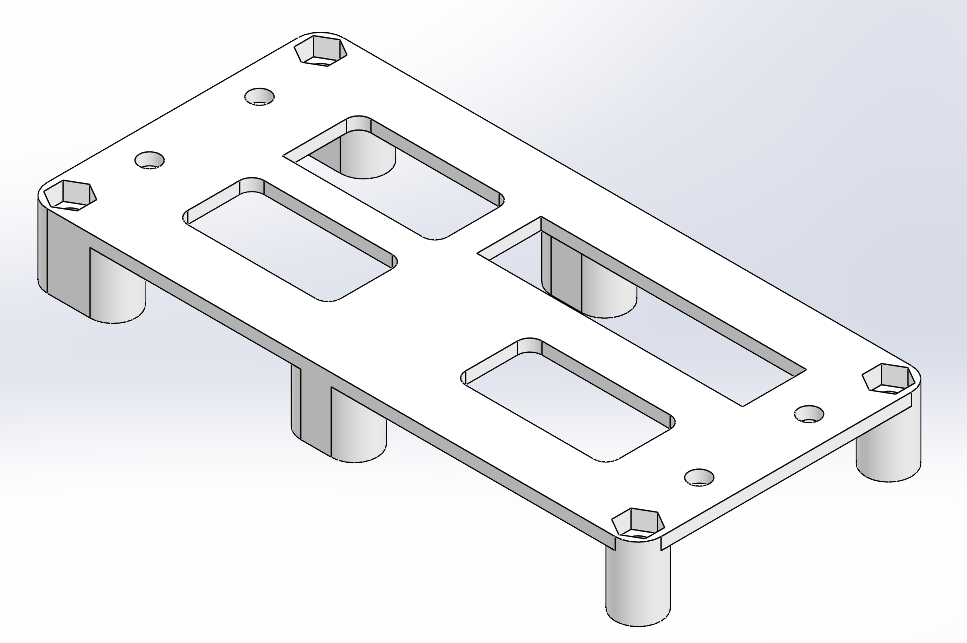

M6_P_0134 Front Holder LCD Display Front Holder LCD Display 1 White 30 % 0 g 0 hours PETG 1 2025-06-29

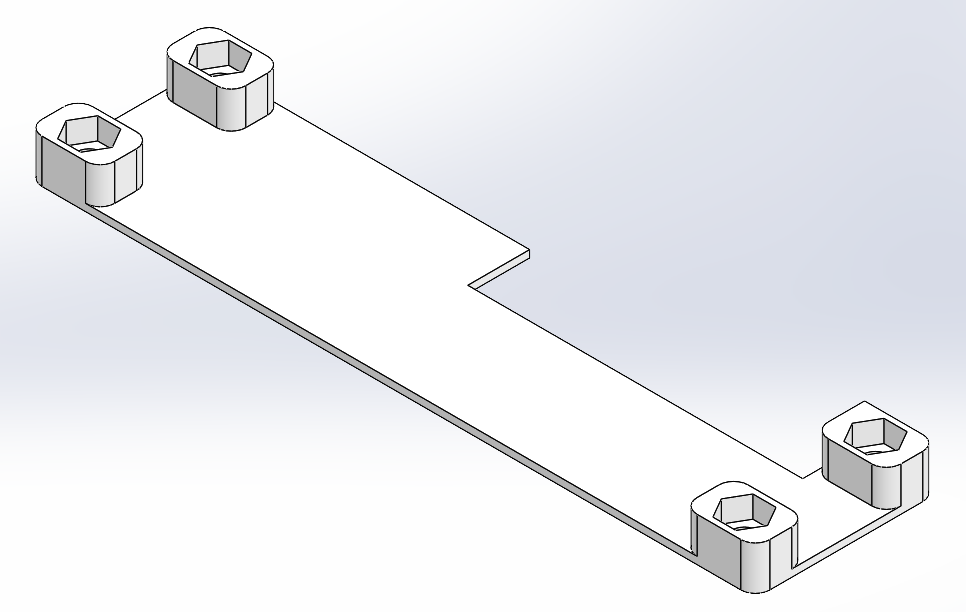

M6_P_0135 Rear Holder LCD Display Rear Holder LCD Display 1 White 30 % 0 g 0 hours PETG 1 2025-06-29

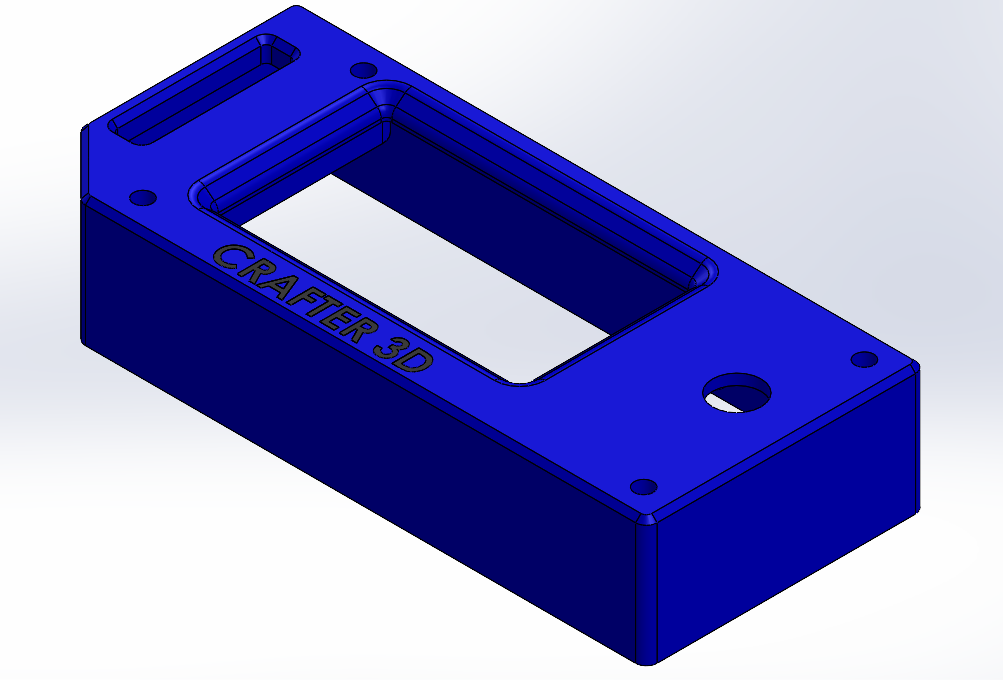

M6_P_0001 LCD Display Cover LCD Display Cover 1 Blue 30 % 0 g 0 hours PETG 3 2025-06-29
M6_P_0104 Hinge Door Site Hinge Door Site 3 Blue 30 % 2.37 g 0.38 hours PETG 2 2024-12-21
M6_P_0102 Hinge Base Site Hinge Base Site 3 Blue 100 % 3.14 g 0.35 hours PETG 2 2024-12-21

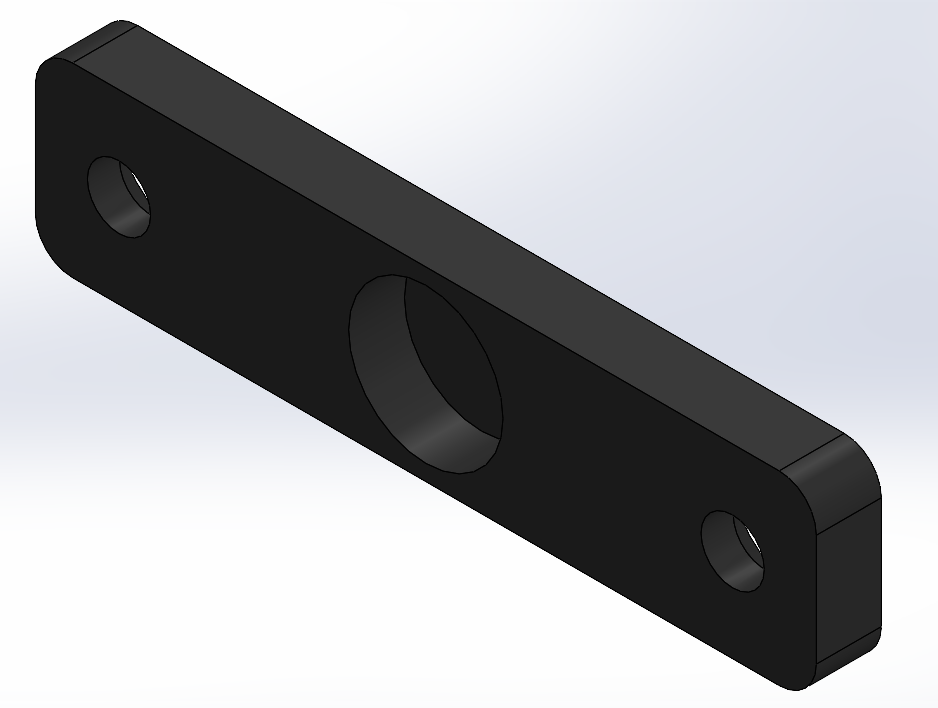

M6_P_0132 Rear Door Magnet Rear Door Magnet 1 Black 30 % 0 g 0 hours PETG 1 2025-06-29

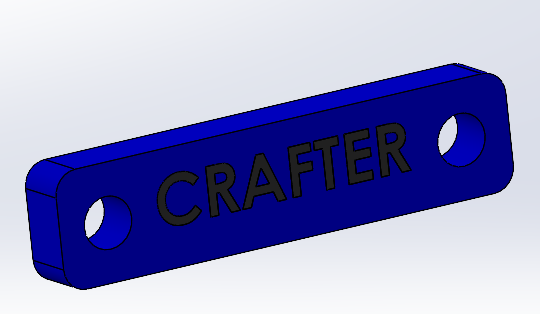

M6_P_0131 Front Door Magnet Front Door Magnet 1 Blue 30 % 0 g 0 hours PETG 1 2025-06-29
M6_P_0108 Door Handle Door Handle 1 Black 100 % 8.33 g 0.5 hours PETG 2 2024-12-21
icon Crafter3D 3d commercial items
Part Number Name Image Quantity Version Last Updated
C_0123 Front Acrylic Panel Black Matte Front Acrylic Panel Black Matte 1 2 2025-07-01
C_0153 Magnet 8mm Magnet 8mm 1 1 2025-06-20
C_0124 Door Acrylic Panel Transparent Door Acrylic Panel Transparent 1 1 2024-10-09
C_0154 MKS Mini12864 V3.0 LCD Display MKS Mini12864 V3.0 LCD Display 1 2 2025-07-14
C_0090 M3x5x4 threaded heat set insert M3x5x4 threaded heat set insert 16 7 2025-07-14
icon Crafter3D screws
Part Number Name Image Quantity Screw head Metric Length Version Last Updated
M3x8 Button M3 x 8mm ISO7380 Button M3 x 8mm ISO7380 Button 14 Button M3 8 mm 4 2024-10-10
M3x10 Conic M3 x 10mm ISO10642 Conic M3 x 10mm ISO10642 Conic 2 Conic M3 10 mm 1 2024-09-02
Nut M3 Nut M3 Nut M3 8 Nut M3 2 mm 1 2024-09-06
M3x12 Hex M3 x 12mm DIN912 Hex M3 x 12mm DIN912 Hex 4 Hex M3 12 mm 1 2024-09-10
M3x25 Hex M3 x 25mm DIN912 Hex M3 x 25mm DIN912 Hex 7 Hex M3 25 mm 1 2024-09-09
icon Crafter3D electrical items
Part Number Name Image Quantity Connector start Connector end Cable Length Version Last Updated
No Screws on this assembly
