| Part Number | Name | Image | Quantity | Color | Infill(%) | Weight(g) | Print Time(h) | Print Material | Version | Last Updated | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No 3D printed items on this assembly | ||||||||||||
| Part Number | Name | Image | Quantity | Version | Last Updated |
|---|---|---|---|---|---|

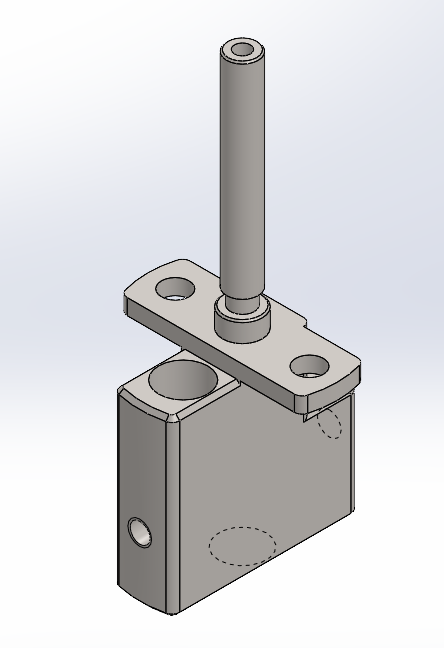

| C_0138 | Print head heat block |  |
1 | 3 | 2025-07-01 |

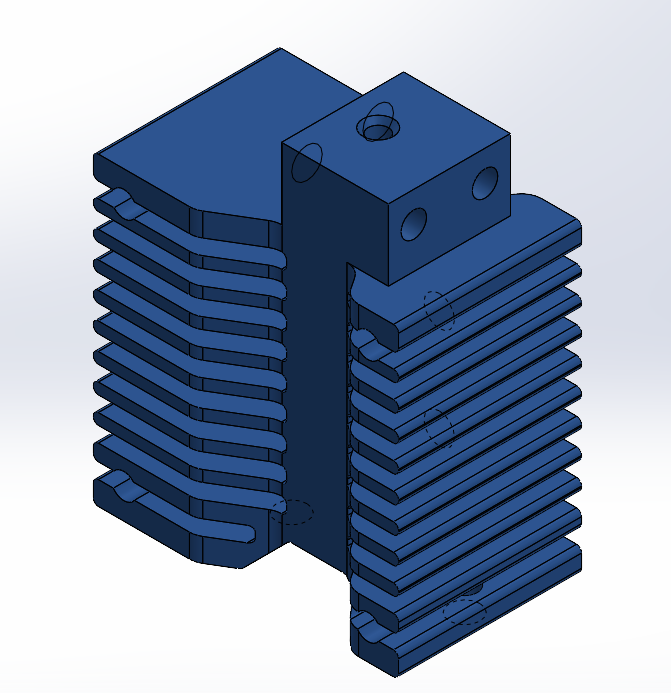

| C_0139 | Print head heat sink |  |
1 | 3 | 2025-07-01 |
| C_0011 | Nozzle 0,4 high flow cht |  |
1 | 3 | 2025-07-14 |
| C_0010 | Fan 3010 24v |  |
1 | 3 | 2025-07-14 |

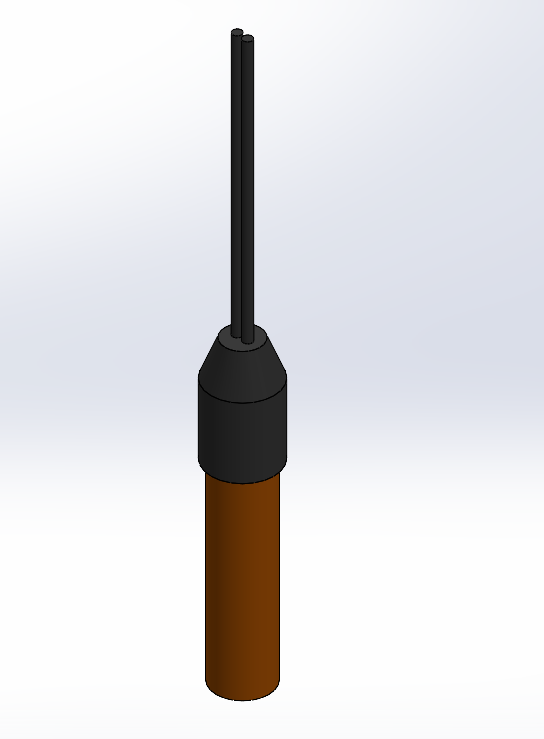

| C_0141 | Superlab heater cartridge 6x20mm 24V 100W |  |
1 | 2 | 2025-07-14 |
| C_0144 | NTC 100k thermistor with 2pin |  |
1 | 4 | 2025-07-14 |

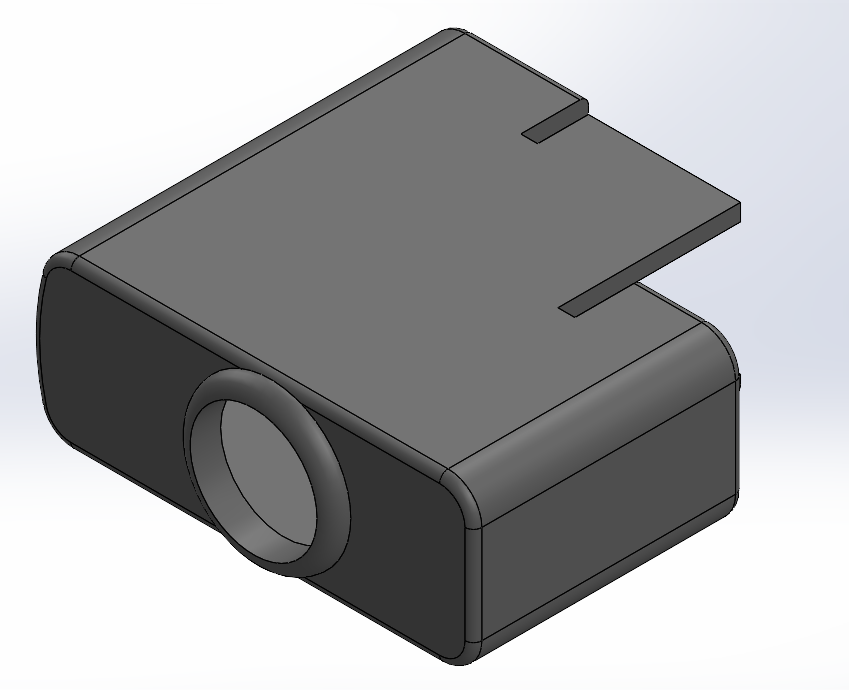

| C_0142 | Heat block socket |  |
1 | 4 | 2025-07-01 |
| Part Number | Name | Image | Quantity | Screw head | Metric | Length | Version | Last Updated |
|---|---|---|---|---|---|---|---|---|
| Washer M3 | Washer M3 - DIN125 |  |
4 | Washer | M3 | 1 mm | 2 | 2025-07-08 |
| M3x16 Hex | M3 x 16mm DIN912 Hex |  |
4 | Hex | M3 | 16 mm | 1 | 2024-09-02 |

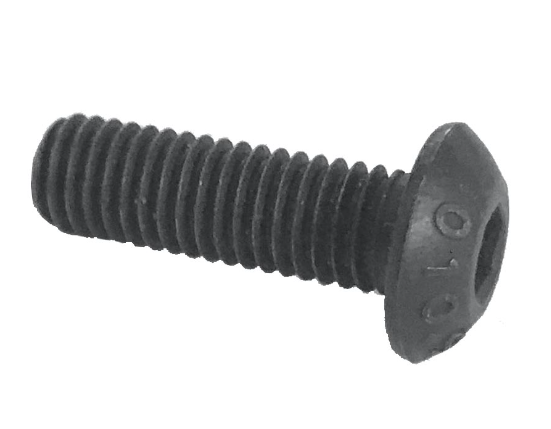

| M3x6 Button | M3 x 6mm ISO7380 Button |  |
2 | Button | M3 | 6 mm | 1 | 2025-06-26 |
| M3 x 3 Headless | M3 x 3mm DIN913 Headless |  |
4 | Headless | M3 | 3 mm | 2 | 2024-09-09 |
| Part Number | Name | Image | Quantity | Connector start | Connector end | Cable | Length | Version | Last Updated | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No Screws on this assembly | |||||||||||||
