Assy Main Bottom Frame assembly for Crafter M6 Crafter3D

M6_A_2000 - Assy Main Bottom Frame

Version 4 (21-12-2024)

icon Crafter3D 3d printed items 3D printed parts:
31
icon Crafter3D Filament Total filament required:
598.26 grams
icon Crafter3D 3d printing time Total printing time:
22.78 hours
icon Crafter3D subassembly Sub-assemblies
5
icon Crafter3D 3d commercial items Commercial parts:
59
icon Crafter3D screws Screws:
118
icon Crafter3D electrical items Electrical Parts
7
<< Back
icon Crafter3D 3d printed items
Part Number Name Image Quantity Color Infill(%) Weight(g) Print Time(h) Print Material Version Last Updated
M6_P_0025 Bottom Fram Left Bracket Bottom Fram Left Bracket 1 White 15 % 0 g 0 hours PETG 2 2024-10-10
M6_P_0026 Bottom Fram Right Bracket Bottom Fram Right Bracket 1 White 15 % 0 g 0 hours PETG 2 2024-10-10
M6_P_0110 Switch Door Bracket Switch Door Bracket 1 Black 10 % 13.18 g 0.6 hours PETG 3 2024-10-15

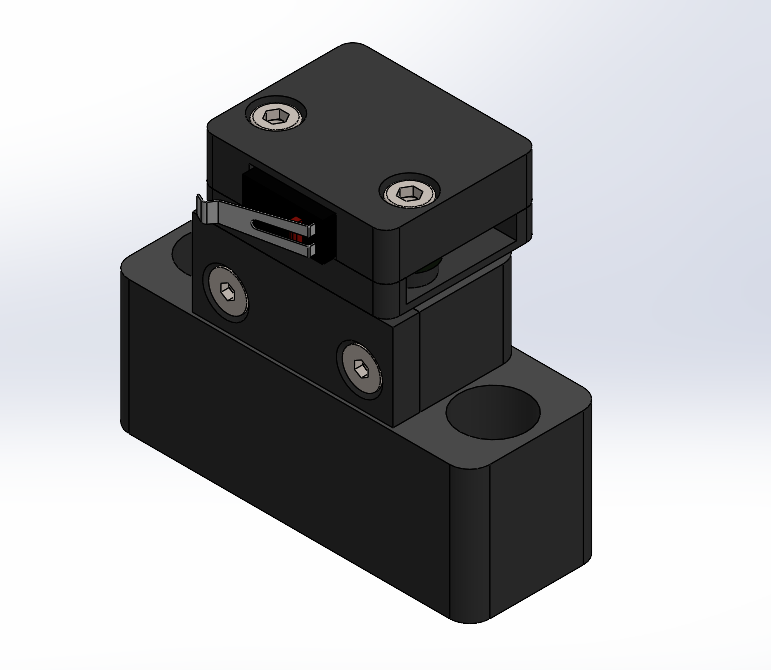

M6_P_0027 Z Bottom Limit Bracket Z Bottom Limit Bracket 3 Black 15 % 12.08 g 0.6 hours PETG 3 2024-10-15
M6_P_0005 Z Bottom Limit & Bed Chain Bracket Z Bottom Limit & Bed Chain Bracket 1 Black 30 % 13.72 g 0.8 hours PETG 2 2024-12-21
icon Crafter3D 3d commercial items
Part Number Name Image Quantity Version Last Updated
C_0054 Rubber Compressor Foot for Voron V2.4 (D48 x H18mm) Rubber Compressor Foot for Voron V2.4 (D48 x H18mm) 4 2 2024-10-03
C_0093 Bottom Cover Acrylic panel Bottom Cover Acrylic panel 1 2 2024-10-03
C_0090 M3x5x4 threaded heat set insert M3x5x4 threaded heat set insert 10 6 2024-10-03
icon Crafter3D screws
Part Number Name Image Quantity Screw head Metric Length Version Last Updated
M3x6 Hex M3 x 6mm DIN912 Hex M3 x 6mm DIN912 Hex 2 Hex M3 6 mm 1 2024-09-02
M3x5 Hex M3 x 5mm DIN912 Hex M3 x 5mm DIN912 Hex 2 Hex M3 5 mm 1 2024-10-03
M3x10 Hex M3 x 10mm DIN912 Hex M3 x 10mm DIN912 Hex 1 Hex M3 10 mm 1 2024-09-09
M5x20 Button M5 x 20mm ISO7380 Button M5 x 20mm ISO7380 Button 12 Hex M5 20 mm 1 2024-10-03
M5x25 Hex M5 x 25mm DIN912 Hex M5 x 25mm DIN912 Hex 23 Hex M5 25 mm 1 2024-09-02
icon Crafter3D electrical items
Part Number Name Image Quantity Connector start Connector end Cable Length Version Last Updated
C_0013 Horizonal mechnical endstop Horizonal mechnical endstop 2 s s s 0 mm 2 2024-10-03
icon Crafter3D sub-assembly
