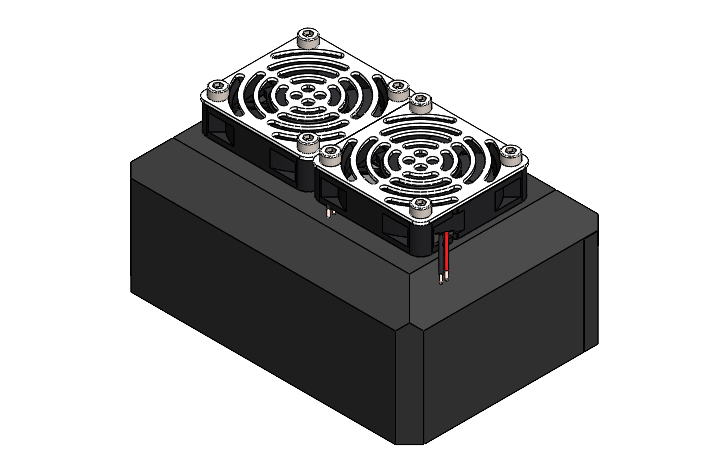

Assy Main Electrical assembly for Crafter M6 Crafter3D

M6_A_5000 - Assy Main Electrical

Version 4 (15-10-2024)

icon Crafter3D 3d printed items 3D printed parts:
28
icon Crafter3D Filament Total filament required:
421.52 grams
icon Crafter3D 3d printing time Total printing time:
15.49 hours
icon Crafter3D subassembly Sub-assemblies
5
icon Crafter3D 3d commercial items Commercial parts:
36
icon Crafter3D screws Screws:
44
icon Crafter3D electrical items Electrical Parts
17
<< Back
icon Crafter3D 3d printed items
Part Number Name Image Quantity Color Infill(%) Weight(g) Print Time(h) Print Material Version Last Updated
No 3D printed items on this assembly
icon Crafter3D 3d commercial items
Part Number Name Image Quantity Version Last Updated
No Commercial items on this assembly
icon Crafter3D screws
Part Number Name Image Quantity Screw head Metric Length Version Last Updated
M3x10 Button M3 x 10mm ISO7380 Button M3 x 10mm ISO7380 Button 1 Button M3 10 mm 1 2024-10-10
M3x8 Hex M3 x 8mm DIN912 Hex M3 x 8mm DIN912 Hex 8 Hex M3 8 mm 1 2024-09-09
M3x8 Button M3 x 8mm ISO7380 Button M3 x 8mm ISO7380 Button 4 Button M3 8 mm 4 2024-10-10
Nut M3 Nut M3 Nut M3 1 Nut M3 2 mm 1 2024-09-06
icon Crafter3D electrical items
Part Number Name Image Quantity Connector start Connector end Cable Length Version Last Updated
C_0050 Power switch and connector AC Power switch and connector AC 1 a a a 0 mm 3 2024-09-20
icon Crafter3D sub-assembly
