Crafter M6 3D printer Crafter3D

Crafter M6 Informations de Construction

icon Crafter3D 3d printed items Pièces imprimées en 3D :
146
icon Crafter3D Filament Filament total requis :
2496 grammes
icon Crafter3D 3d printing time Temps d'impression total :
94.57 heures
icon Crafter3D 3d commercial items Pièces commerciales :
261
icon Crafter3D screws Vis :
407
icon Crafter3D electrical items Pièces électriques
39
Acheter l'Imprimante Voir les Assemblages >>

Pièces imprimées en 3D pour Crafter M6

Filtres Rapides : Couleur Filament Dernière Mise à Jour
icon Crafter3D 3d printed items
Numéro de Pièce Nom Image Quantité Couleur Remplissage(%) Poids(g) Temps d'Impression(h) Matériau d'Impression Version Dernière Mise à Jour
M6_P_0045 Piezoelectric Bed Level Base Piezoelectric Bed Level Base 1 Black 30 % 0 g 0 hours PETG 3 2024-10-09
M6_P_0046 Piezoelectric Bed Level Top Piezoelectric Bed Level Top 1 Black 60 % 0 g 0 hours PETG 2 2024-10-09
M6_P_0033 Coupling Print Belt Roller Coupling Print Belt Roller 2 Black 100 % 39.66 g 1.2 hours PETG 4 2024-11-05
M6_P_0034 Driven Gear Print Belt Roller Driven Gear Print Belt Roller 1 Black 100 % 58.87 g 1.85 hours PETG 4 2024-11-06
M6_P_0035 Spacer Support Print Belt Roller Spacer Support Print Belt Roller 2 Black 100 % 10.29 g 0.5 hours PETG 3 2024-12-10
M6_P_0031 Tensioner Free Print Belt Roller Tensioner Free Print Belt Roller 2 Black 60 % 17.94 g 0.8 hours PETG 3 2024-11-06
M6_P_0032 Spacer Print Belt Rollers Spacer Print Belt Rollers 2 Black 100 % 0.34 g 0.1 hours PETG 3 2024-11-06
M6_P_0041 Heated Bed Spring Height Heated Bed Spring Height 4 White 100 % 3.18 g 0.3 hours PETG 3 2024-11-07
M6_P_0038 Bracket Print Belt Tensioner Bracket Print Belt Tensioner 2 Blue 100 % 8.27 g 0.5 hours PETG 3 2024-11-07
M6_P_0044 Print Belt Steppero Motor Bracket Print Belt Steppero Motor Bracket 1 Blue 60 % 28.17 g 0.95 hours PETG 3 2024-11-07
M6_P_0080 Stepper Motor Belt Tensioner Stepper Motor Belt Tensioner 1 White 100 % 7.36 g 0.5 hours PETG 3 2024-11-07
M6_P_0039 Print Belt Bottom Traps Print Belt Bottom Traps 2 Blue 30 % 6.24 g 0.4 hours PETG 4 2024-12-11
M6_P_0074 Rear Locker Bracket Core XY Rear Locker Bracket Core XY 2 Blue 20 % 86.11 g 2.5 hours PETG 4 2024-12-09
M6_P_0073 Front Right Locker Bracket Core XY Front Right Locker Bracket Core XY 1 Blue 20 % 106.1 g 3.05 hours PETG 5 2024-12-09
M6_P_0072 Front Left Locker Bracket Core XY Front Left Locker Bracket Core XY 1 Blue 20 % 106.1 g 3.05 hours PETG 5 2024-12-09
M6_P_0112 Bottom Left Locker Bracket Core XY Bottom Left Locker Bracket Core XY 1 Black 20 % 58.42 g 1.7 hours PETG 7 2024-12-09
M6_P_0113 Bottom Right Locker Bracket Core XY Bottom Right Locker Bracket Core XY 1 Black 20 % 58.42 g 1.7 hours PETG 7 2024-12-09
M6_P_0019 Rear Core XY Bracket Up Down Rear Core XY Bracket Up Down 1 White 20 % 74.34 g 2.4 hours PETG 10 2024-12-09
M6_P_0020 Rear Lifting Bracket Rear Lifting Bracket 1 Blue 60 % 43.17 g 1.7 hours PETG 5 2024-12-09
M6_P_0017 Bottom Rear bracket Z System Bottom Rear bracket Z System 1 White 20 % 49.82 g 1.5 hours PETG 4 2024-10-14
M6_P_0018 Top Rear bracket Z System Top Rear bracket Z System 1 Blue 20 % 36.19 g 1.15 hours PETG 5 2024-10-14
M6_P_0021 Left Lifting Bracket Left Lifting Bracket 1 Blue 60 % 29.6 g 1.2 hours PETG 6 2024-12-09
M6_P_0063 Print head front cover Print head front cover 1 Blue 30 % 58 g 2.4 hours PETG 3 2024-09-05
M6_P_0064 Layer fan duct cover Layer fan duct cover 1 Black 100 % 6 g 0.53 hours PETG 4 2024-09-06
M6_P_0057 Print head main bracket Print head main bracket 1 White 60 % 75 g 3 hours PETG 6 2024-12-10
M6_P_0058 Print head belt trap Print head belt trap 2 Black 60 % 8 g 0.33 hours PETG 4 2024-09-06
M6_P_0059 Print head extruder bracket Print head extruder bracket 1 Black 100 % 28 g 1 hours PETG 5 2024-12-10
M6_P_0060 Print head extruder tensioner Print head extruder tensioner 1 Black 100 % 4 g 0.28 hours PETG 3 2024-09-06
M6_P_0061 Print head lever cutter Print head lever cutter 1 White 100 % 3 g 0.26 hours PETG 3 2024-09-02
M6_P_0062 Print head cutter holder Print head cutter holder 1 Blue 100 % 1 g 0.15 hours PETG 5 2024-09-09
M6_P_0068 Print head cable guide Print head cable guide 1 White 30 % 1 g 0.16 hours PETG 2 2024-09-02
M6_P_0069 Cable back cover Cable back cover 1 Black 60 % 5.7 g 0.4 hours PETG 4 2025-01-12
M6_P_0056 Y Axis carriage Core XY Y Axis carriage Core XY 2 Blue 10 % 55 g 1.78 hours PETG 2 2024-09-06
M6_P_0012 Cover Y Axis carriage Core XY Cover Y Axis carriage Core XY 2 Blue 10 % 19 g 0.63 hours PETG 3 2024-09-06
M6_P_0049 Front bracket Core XY Front bracket Core XY 1 White 10 % 61 g 1.9 hours PETG 2 2024-09-10
M6_P_0048 Rear bracket Core XY Rear bracket Core XY 1 White 10 % 60 g 1.86 hours PETG 3 2024-09-07
M6_P_0114 Sliding bracket Right Core XY Sliding bracket Right Core XY 1 Black 100 % 6 g 0.33 hours PETG 3 2024-09-09
M6_P_0081 Sliding bracket Left Core XY Sliding bracket Left Core XY 1 Black 100 % 6 g 0.33 hours PETG 3 2024-09-09
M6_P_0050 Tensor pulley Core XY Tensor pulley Core XY 1 Blue 30 % 17 g 0.73 hours PETG 2 2024-09-10
M6_P_0051 Bracket cable chain Core XY Bracket cable chain Core XY 1 Black 30 % 11.53 g 0.63 hours PETG 5 2024-11-25
M6_P_0052 End Stop Carriage Core XY End Stop Carriage Core XY 2 White 10 % 0 g 0 hours PETG 1 2024-09-10
M6_P_0116 Top Holder Position Core XY Top Holder Position Core XY 2 White 10 % 6.74 g 0.33 hours PETG 3 2024-11-18
M6_P_0117 Top Holder Handle Position Core XY Top Holder Handle Position Core XY 2 White 10 % 6.81 g 0.35 hours PETG 2 2024-09-11
M6_P_0092 Electrical Bracket Power source 1 Electrical Bracket Power source 1 1 Black 10 % 40.45 g 1.2 hours PETG 2 2024-09-20
M6_P_0093 Electrical Bracket Bottom Right Electrical Bracket Bottom Right 1 Black 10 % 61.44 g 1.8 hours PETG 8 2024-11-11
M6_P_0097 Electrical Bracket bottom slider Electrical Bracket bottom slider 1 Black 10 % 11.28 g 0.41 hours PETG 1 2024-09-12
M6_P_0084 Electrical Bracket Bottom Left Electrical Bracket Bottom Left 1 Black 10 % 54.54 g 1.9 hours PETG 4 2024-10-11
M6_P_0090 Electrical Bracket Middle Right Electrical Bracket Middle Right 1 Black 10 % 32.82 g 1 hours PETG 5 2024-10-11
M6_P_0086 Electrical Bracket Middle Left Electrical Bracket Middle Left 1 Black 10 % 39.23 g 1.38 hours PETG 2 2024-10-11
M6_P_0089 Electrical Bracket Top Right Electrical Bracket Top Right 1 Black 10 % 39.27 g 1.3 hours PETG 2 2024-10-11
M6_P_0088 Electrical Bracket Top Left Electrical Bracket Top Left 1 Black 10 % 57.81 g 2 hours PETG 2 2024-10-11
M6_P_0096 Electrical Bracket slider top Electrical Bracket slider top 1 Black 10 % 9.35 g 0.35 hours PETG 1 2024-09-12
M6_P_0120 Arduino bracket Arduino bracket 1 White 10 % 7.28 g 0.4 hours PETG 2 2024-09-20
M6_P_0085 Raspberry pi bracket Raspberry pi bracket 1 White 10 % 9.33 g 0.45 hours PETG 1 2024-09-12
M6_P_0095 Fan raspberry pi duct Fan raspberry pi duct 1 White 10 % 34.29 g 1 hours PETG 1 2024-09-12
M6_P_0087 Electronics separator Electronics separator 10 White 10 % 0.16 g 0.11 hours PETG 1 2024-09-12
M6_P_0094 Fan cover Fan cover 4 White 10 % 0.65 g 0.16 hours PETG 1 2024-09-12
M6_P_0091 Octopus BTT bracket Octopus BTT bracket 1 White 10 % 41.36 g 1.16 hours PETG 1 2024-09-12
M6_P_0121 Bracket 24V power supply Bracket 24V power supply 1 Black 10 % 40.31 g 1.2 hours PETG 1 2024-09-20
M6_P_0013 Bottom Left bracket Z System Bottom Left bracket Z System 1 White 20 % 56.61 g 1.65 hours PETG 3 2024-10-14
M6_P_0014 Top Left bracket Z System Top Left bracket Z System 1 Blue 20 % 32.54 g 1 hours PETG 3 2024-10-14
M6_P_0022 Right Lifting Bracket Right Lifting Bracket 1 Blue 60 % 29.6 g 1.2 hours PETG 5 2024-12-09
M6_P_0015 Bottom Right bracket Z System Bottom Right bracket Z System 1 White 20 % 65 g 1.65 hours PETG 3 2024-10-14
M6_P_0016 Top Left bracket Z System Top Left bracket Z System 1 Blue 20 % 32.5 g 1 hours PETG 4 2024-10-14
M6_P_0115 Cover Rear Core XY Bracket Cover Rear Core XY Bracket 1 White 20 % 15.09 g 0.5 hours PETG 3 2024-10-14
M6_P_0025 Bottom Fram Left Bracket Bottom Fram Left Bracket 1 White 15 % 0 g 0 hours PETG 2 2024-10-10
M6_P_0026 Bottom Fram Right Bracket Bottom Fram Right Bracket 1 White 15 % 0 g 0 hours PETG 2 2024-10-10

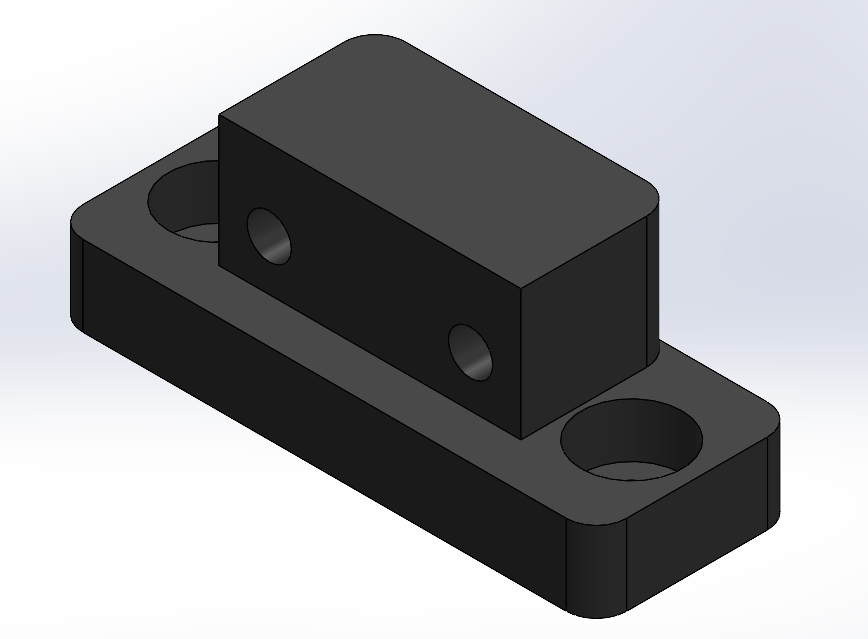

M6_P_0110 Switch Door Bracket Switch Door Bracket 1 Black 10 % 13.18 g 0.6 hours PETG 3 2024-10-15
M6_P_0109 Stepper Motor Door Bracket Stepper Motor Door Bracket 1 White 15 % 38.3 g 1.25 hours PETG 4 2024-10-14
M6_P_0027 Z Bottom Limit Bracket Z Bottom Limit Bracket 3 Black 15 % 12.08 g 0.6 hours PETG 3 2024-10-15
M6_P_0105 Arm Door Opener 1 Arm Door Opener 1 1 Black 10 % 13 g 0.55 hours PETG 3 2024-10-14
M6_P_0106 Arm Door Opener 2 Arm Door Opener 2 1 Black 10 % 9.54 g 0.45 hours PETG 3 2024-10-14
M6_P_0107 Door Opener Bracket Door Opener Bracket 1 Black 10 % 2.08 g 0.4 hours N/A 3 2024-10-14
M6_P_0053 Aux Blower Bracket Aux Blower Bracket 1 Black 10 % 0 g 0 hours PETG 2 2024-10-10
M6_P_0075 Cleanning Structure Cleanning Structure 1 White 30 % 0 g 0 hours PETG 1 2024-10-05
M6_P_0076 Print head lever Print head lever 1 White 30 % 0 g 0 hours PETG 1 2024-10-05
M6_P_0077 Pop lever cleaner Pop lever cleaner 1 White 30 % 0 g 0 hours PETG 1 2024-10-05
M6_P_0118 Bottom cover cleaner box Bottom cover cleaner box 1 White 30 % 0 g 0 hours PETG 1 2024-10-05
M6_P_0122 Bracket GE5C Bearing Bracket GE5C Bearing 3 White 60 % 0 g 0 hours PETG 2 2024-12-10
M6_P_0104 Hinge Door Site Hinge Door Site 3 Blue 30 % 2.37 g 0.38 hours PETG 2 2024-12-21
M6_P_0102 Hinge Base Site Hinge Base Site 3 Blue 100 % 3.14 g 0.35 hours PETG 2 2024-12-21
M6_P_0108 Door Handle Door Handle 2 Black 100 % 8.33 g 0.5 hours PETG 2 2024-12-21
M6_P_0010 Coupling Front Print Belt Roller Coupling Front Print Belt Roller 1 Black 100 % 50.87 g 1.55 hours PETG 1 2024-11-10
M6_P_0009 Limit Bracket Left Core XY 45 degrees Limit Bracket Left Core XY 45 degrees 1 Blue 100 % 1.22 g 0.2 hours PETG 8 2024-12-21
M6_P_0006 Cable lead Core XY Cable lead Core XY 2 Black 10 % 0 g 0 hours PETG 2 2024-11-25
M6_P_0007 Cable Bracket Motor Core XY Cable Bracket Motor Core XY 1 Black 10 % 0 g 0 hours PETG 1 2024-11-25
M6_P_0003 Clip Acrylic Panel Clip Acrylic Panel 6 Black 100 % 0.97 g 0.22 hours PETG 2 2024-12-21
M6_P_0001 Limit Bracket Right Core XY 45 degrees Limit Bracket Right Core XY 45 degrees 1 Blue 100 % 1.22 g 0.2 hours PETG 2 2024-12-21
M6_P_0008 Cable Clip Cable Clip 11 Black 100 % 0.86 g 0.22 hours PETG 2 2024-12-21
M6_P_0005 Z Bottom Limit & Bed Chain Bracket Z Bottom Limit & Bed Chain Bracket 1 Black 30 % 13.72 g 0.8 hours PETG 2 2024-12-21
M6_P_0011 Print Belt Bottom Traps Mirror Print Belt Bottom Traps Mirror 2 Blue 30 % 6.24 g 0.4 hours PETG 1 2024-12-11
M6_P_0004 Cable Chain Print Betl Bracket Cable Chain Print Betl Bracket 1 Black 30 % 0 g 0 hours PETG 1 2024-12-11
