Assy Print Head assembly for Crafter M6 Crafter3D

M6_A_4004 - Assy Print Head

Version 2 (20-11-2024)

icon Crafter3D 3d printed items 3D-gedruckte Teile insgesamt:
11
icon Crafter3D Filament Benötigtes Gesamtfilament:
186 Gramm
icon Crafter3D 3d printing time Gesamtdruckzeit:
8.09 Stunden
icon Crafter3D subassembly Baugruppen
3
icon Crafter3D 3d commercial items Kommerzielle Teile insgesamt:
33
icon Crafter3D screws Schrauben insgesamt:
40
icon Crafter3D electrical items Elektrische Teile
8
<< Back
icon Crafter3D 3d printed items
Teilenummer Name Bild Menge Farbe Füllung(%) Gewicht(g) Druckzeit(h) Druckmaterial Version Zuletzt aktualisiert

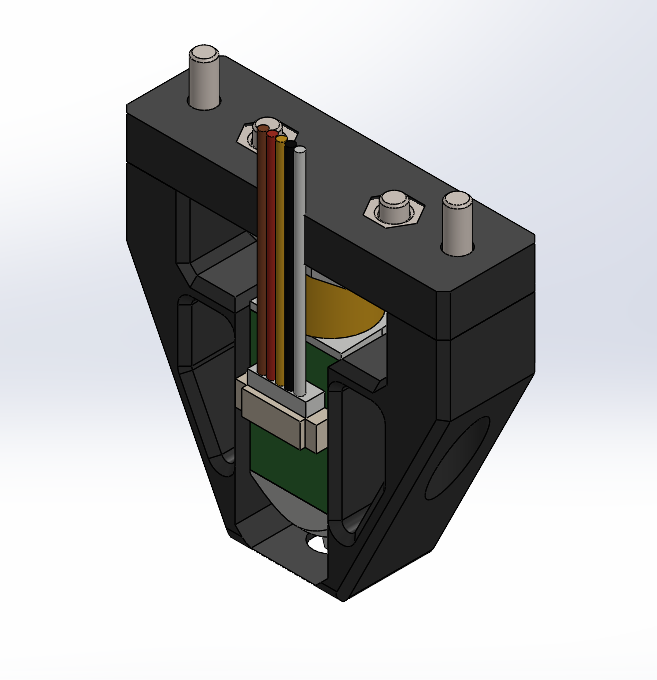

M6_P_0057 Print head main bracket Print head main bracket 1 White 60 % 69 g 2.5 hours PETG 4 2024-09-06

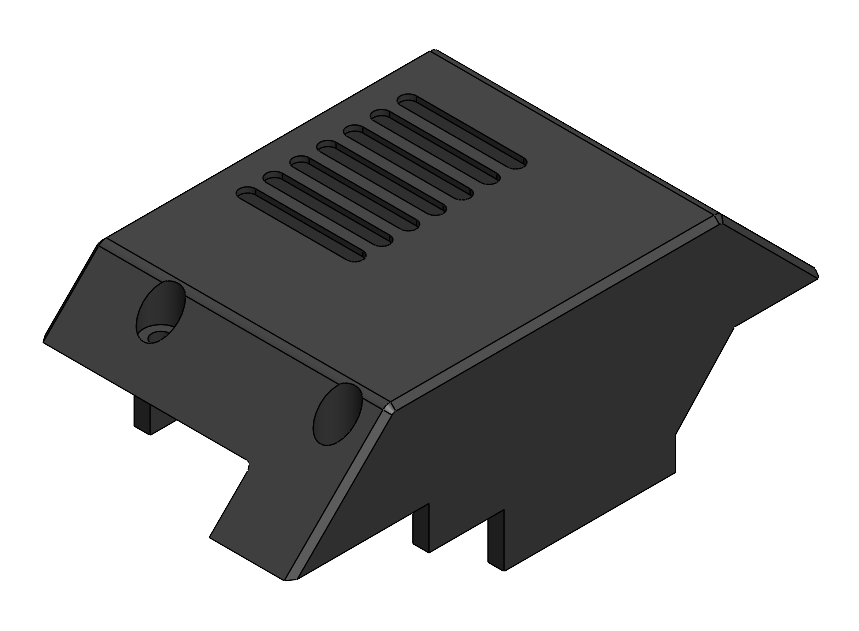

M6_P_0068 Print head cable guide Print head cable guide 1 White 30 % 1 g 0.16 hours PETG 2 2024-09-02
M6_P_0069 Print head cable trap Print head cable trap 1 White 30 % 0 g 0.15 hours PETG 2 2024-09-02
M6_P_0058 Print head belt trap Print head belt trap 2 Black 60 % 8 g 0.33 hours PETG 4 2024-09-06
icon Crafter3D 3d commercial items
Teilenummer Name Bild Menge Version Zuletzt aktualisiert
C_0015 Bearings Linear Rods 10mm 55mm LM10LUU Bearings Linear Rods 10mm 55mm LM10LUU 2 4 2024-10-03
C_0090 M3x5x4 threaded heat set insert M3x5x4 threaded heat set insert 18 6 2024-10-03
C_0024 Insert M5 Insert M5 1 2 2024-10-03
icon Crafter3D screws
Teilenummer Name Bild Menge Schraubenkopf Metrisch Länge Version Zuletzt aktualisiert
M3x25 Hex M3 x 25mm DIN912 Hex M3 x 25mm DIN912 Hex 4 Hex M3 25 mm 1 2024-09-09
M3x10 Hex M3 x 10mm DIN912 Hex M3 x 10mm DIN912 Hex 4 Hex M3 10 mm 1 2024-09-09
M3x8 Hex M3 x 8mm DIN912 Hex M3 x 8mm DIN912 Hex 4 Hex M3 8 mm 1 2024-09-09
M3x16 Hex M3 x 16mm DIN912 Hex M3 x 16mm DIN912 Hex 4 Hex M3 16 mm 1 2024-09-02
M3x20 Hex M3 x 20mm DIN912 Hex M3 x 20mm DIN912 Hex 2 Hex M3 20 mm 3 2024-09-09
Self-Screw 2x10mm Self-Screw 2x10mm Self-Screw 2x10mm 2 self-screw M2 10 mm 1 2024-09-02
M3x30 Hex M3 x 30mm DIN912 Hex M3 x 30mm DIN912 Hex 3 Hex M3 30 mm 1 2024-09-02
icon Crafter3D electrical items
Teilenummer Name Bild Menge Anschlussstart Anschlussende Kabel Länge Version Zuletzt aktualisiert
C_0008 LKD-36STH20-1004AHG 36mm pancake stepper motor (10 teeth gear ) LKD-36STH20-1004AHG 36mm pancake stepper motor (10 teeth gear ) 1 mm 1 2024-09-10
C_0048 Microswitch D2FL Microswitch D2FL 1 Weldded a 22AWG 30 mm 2 2024-09-09
C_0143 Accelerometer ADXL345 Accelerometer ADXL345 1 Weldded a 22AWG (6 wires) 600 mm 1 2024-09-09
