Assy Main Core XY assembly for Crafter M6 Crafter3D

M6_A_4000 - Assy Main Core XY

Version 5 (12-01-2025)

icon Crafter3D 3d printed items 3D printed parts:
35
icon Crafter3D Filament Total filament required:
645.23 grams
icon Crafter3D 3d printing time Total printing time:
23.93 hours
icon Crafter3D subassembly Sub-assemblies
5
icon Crafter3D 3d commercial items Commercial parts:
109
icon Crafter3D screws Screws:
146
icon Crafter3D electrical items Electrical Parts
13
<< Back
icon Crafter3D 3d printed items
Part Number Name Image Quantity Color Infill(%) Weight(g) Print Time(h) Print Material Version Last Updated
M6_P_0081 Sliding bracket Left Core XY Sliding bracket Left Core XY 1 Black 100 % 6 g 0.33 hours PETG 3 2024-09-09
M6_P_0114 Sliding bracket Right Core XY Sliding bracket Right Core XY 1 Black 100 % 6 g 0.33 hours PETG 3 2024-09-09
M6_P_0051 Bracket cable chain Core XY Bracket cable chain Core XY 1 Black 30 % 11.53 g 0.63 hours PETG 5 2024-11-25

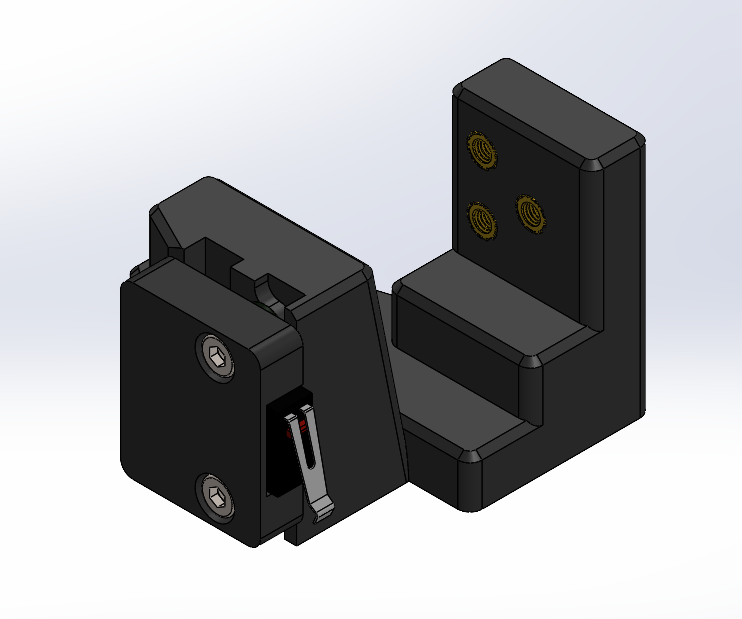

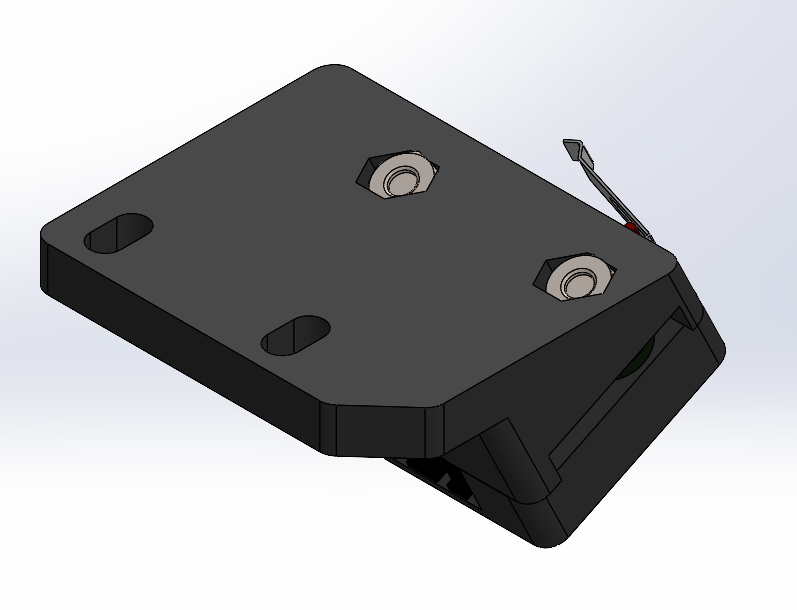

M6_P_0052 End Stop Carriage Core XY End Stop Carriage Core XY 2 White 10 % 0 g 0 hours PETG 1 2024-09-10
M6_P_0006 Cable lead Core XY Cable lead Core XY 2 Black 10 % 0 g 0 hours PETG 2 2024-11-25
icon Crafter3D 3d commercial items
Part Number Name Image Quantity Version Last Updated
C_0026 Steel Rod Smooth 10mm 390mm Steel Rod Smooth 10mm 390mm 2 2 2024-10-03
C_0046 Steel Rod Smooth 10mm 410mm Steel Rod Smooth 10mm 410mm 1 2 2024-10-03
C_0015 Bearings Linear Rods 10mm 55mm LM10LUU Bearings Linear Rods 10mm 55mm LM10LUU 1 4 2024-10-03
C_0006 Open Belt GT2-6mm 2000mm Open Belt GT2-6mm 2000mm 2 2 2024-10-03
C_0014 Cable Chain Bridge type openable style R18 10*15mm Cable Chain Bridge type openable style R18 10*15mm 1 2 2024-10-03
C_0090 M3x5x4 threaded heat set insert M3x5x4 threaded heat set insert 2 6 2024-10-03
icon Crafter3D screws
Part Number Name Image Quantity Screw head Metric Length Version Last Updated
M3x16 Hex M3 x 16mm DIN912 Hex M3 x 16mm DIN912 Hex 8 Hex M3 16 mm 1 2024-09-02
M3x12 Hex M3 x 12mm DIN912 Hex M3 x 12mm DIN912 Hex 4 Hex M3 12 mm 1 2024-09-10
M5x25 Hex M5 x 25mm DIN912 Hex M5 x 25mm DIN912 Hex 18 Hex M5 25 mm 1 2024-09-02
M5x35 Hex M5 x 35mm DIN912 Hex M5 x 35mm DIN912 Hex 1 Hex M5 35 mm 1 2024-09-09
icon Crafter3D electrical items
Part Number Name Image Quantity Connector start Connector end Cable Length Version Last Updated
No Screws on this assembly

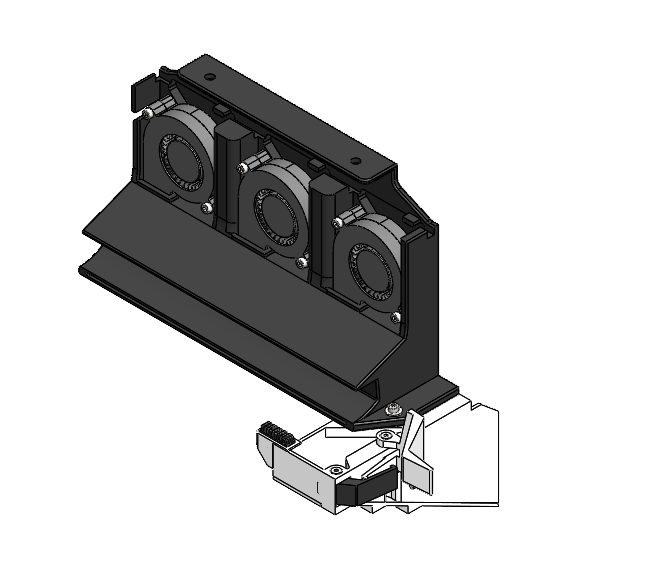

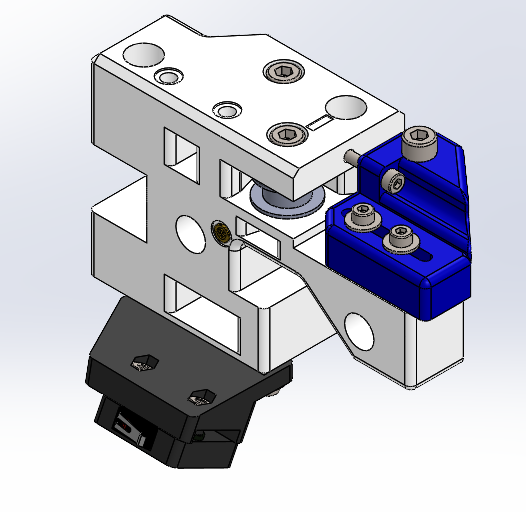

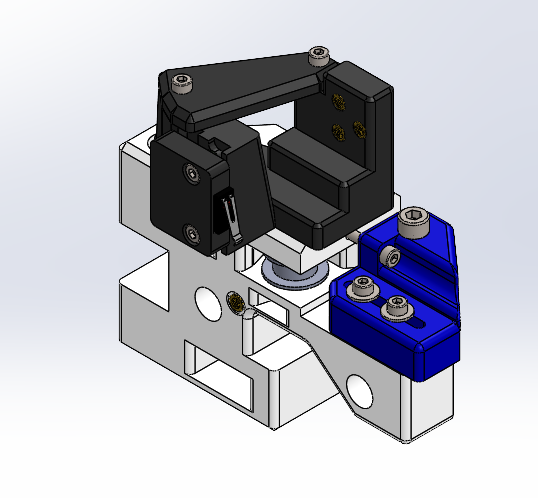

icon Crafter3D sub-assembly
