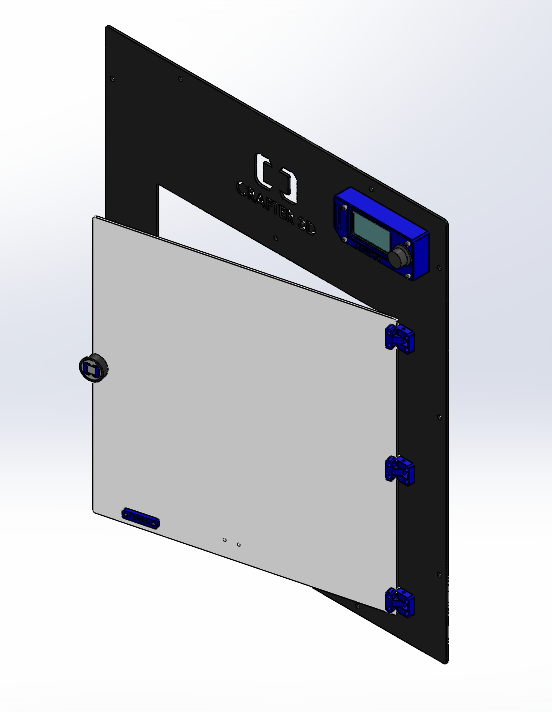

M6_A_0000 - Assy Main Covers
Version 2 (21-12-2024)
33.19 grams
3.19 hours
| Part Number | Name | Image | Quantity | Color | Infill(%) | Weight(g) | Print Time(h) | Print Material | Version | Last Updated |
|---|---|---|---|---|---|---|---|---|---|---|
| M6_P_0102 | Hinge Base Site |  |
3 | Blue | 100 % | 3.14 g | 0.35 hours | PETG | 2 | 2024-12-21 |
| M6_P_0104 | Hinge Door Site |  |
3 | Blue | 30 % | 2.37 g | 0.38 hours | PETG | 2 | 2024-12-21 |
| M6_P_0108 | Door Handle |  |
2 | Black | 100 % | 8.33 g | 0.5 hours | PETG | 2 | 2024-12-21 |
| Part Number | Name | Image | Quantity | Version | Last Updated |
|---|---|---|---|---|---|
| C_0126 | Right Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0127 | Rear Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |

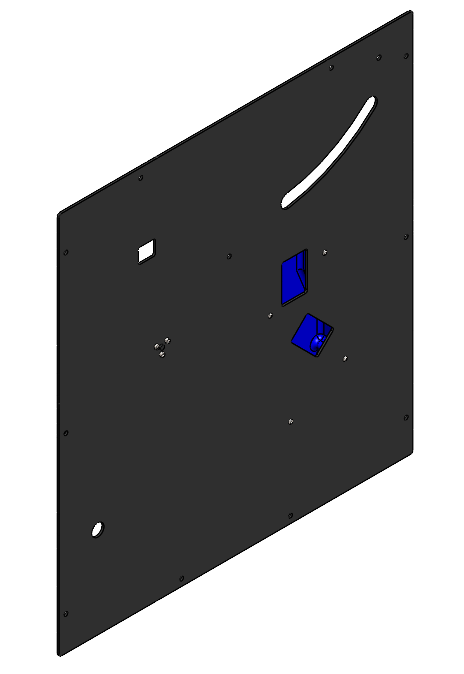

| C_0128 | Electronic Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0129 | Top Acrylic Panel Transparent |  |
1 | 1 | 2024-10-09 |
| C_0123 | Front Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |

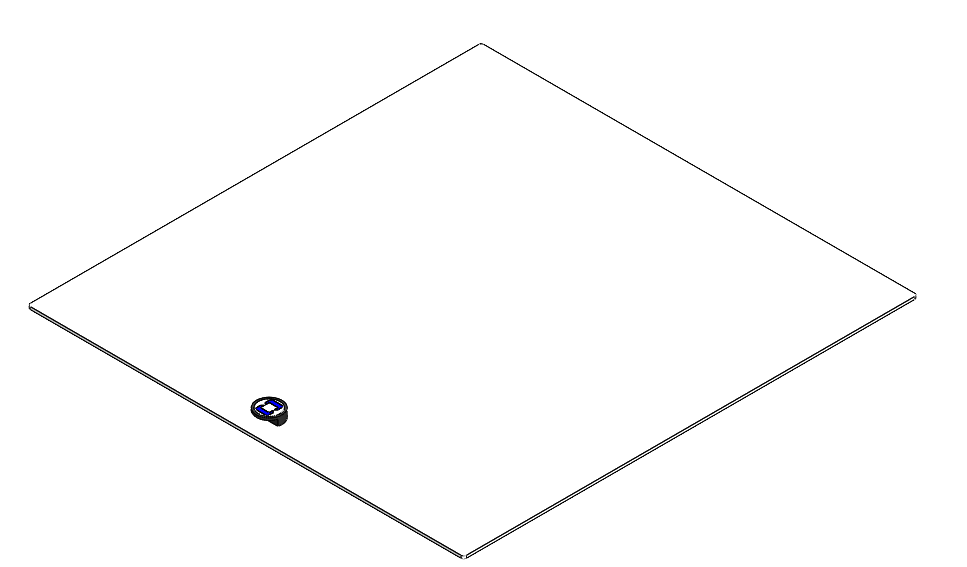

| C_0124 | Door Acrylic Panel Transparent |  |
1 | 1 | 2024-10-09 |
| C_0125 | Left Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| Part Number | Name | Image | Quantity | Screw head | Metric | Length | Version | Last Updated | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No Screws on this assembly | ||||||||||||
| Part Number | Name | Image | Quantity | Connector start | Connector end | Cable | Length | Version | Last Updated | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No Screws on this assembly | |||||||||||||
