| Part Number | Name | Image | Quantity | Version | Last Updated |
|---|---|---|---|---|---|
| C_0090 | M3x5x4 threaded heat set insert |  |
184 | 6 | 2024-10-03 |
| C_0036 | Heated bed 24V PCB heatbed 254*254*4mm 300W |  |
1 | 3 | 2025-05-28 |
| C_0134 | Left Frame Print Belt Rollers |  |
1 | 4 | 2024-10-09 |
| C_0135 | Right Frame Print Belt Rollers |  |
1 | 3 | 2024-10-09 |
| C_0040 | Rollers Motion Ext.Diameter 50mm Thickness 5mm Length 252mm |  |
2 | 6 | 2025-07-01 |
| C_0037 | 3D-Smooth rods M12 x 300mm |  |
1 | 2 | 2024-09-07 |
| C_0045 | 6001ZZ bearing, 28*12*8mm |  |
4 | 2 | 2024-09-07 |
| C_0104 | 3D-Smooth rods M12 x 330mm Mechanized |  |
1 | 3 | 2025-06-20 |
| C_0039 | Belt Close GT2-6mm 350mm |  |
1 | 2 | 2024-09-07 |
| C_0042 | Print Belt 250x856mm |  |
1 | 2 | 2024-09-07 |
| C_0107 | MG17-G10 reducer 1:10 |  |
1 | 2 | 2024-10-09 |
| C_0053 | Nema17 stepper motor 40mm length 1.8 degree BYGHW609 A 1.7A 4.2kg.com |  |
1 | 4 | 2025-06-30 |
| C_0043 | GT2-6mm timing belt pulley 36T 8mm inner bor |  |
1 | 2 | 2024-09-07 |
| C_0136 | Bottom Print Belt Frame |  |
1 | 2 | 2024-10-09 |
| C_0015 | Bearings Linear Rods 10mm 55mm LM10LUU |  |
8 | 4 | 2024-10-03 |
| C_0004 | Brass nut for T8 lead screw - lead 4mm |  |
3 | 4 | 2025-07-01 |
| C_0091 | 688ZZ 16mm(OD) 8mm(ID) 5(Thickness)mm ball bearing |  |
3 | 4 | 2025-06-20 |
| C_0033 | Lead Screw M8 Pitch 2 Lead 4mm Length 510mm |  |
1 | 8 | 2025-07-01 |
| C_0032 | Steel Rod Smooth 10mm 550mm |  |
2 | 4 | 2024-10-03 |
| C_0009 | BL Touch V3.0 |  |
1 | 4 | 2025-07-01 |
| C_0008 | LKD-36STH20-1004AHG 36mm pancake stepper motor (10 teeth gear ) |  |
1 | 1 | 2025-06-30 |
| C_0011 | Nozzle 0,4 high flow cht |  |
1 | 2 | 2024-10-03 |
| C_0014 | Cable Chain Bridge type openable style R18 10*15mm |  |
1 | 2 | 2024-10-03 |
| C_0047 | Blade Cutter 0,5mm |  |
1 | 1 | 2024-09-02 |
| C_0049 | Steel ball 4mm diameter |  |
1 | 3 | 2024-10-03 |
| C_0052 | Fiting pneumatic 4mm ECAS04 |  |
1 | 2 | 2024-10-03 |
| C_0105 | spring C01480230500M |  |
1 | 1 | 2024-09-02 |
| C_0138 | Print head heat block |  |
1 | 3 | 2025-07-01 |
| C_0139 | Print head heat sink |  |
1 | 3 | 2025-07-01 |
| C_0140 | BMG Extruder components kit (with black hardened steel gears) |  |
1 | 1 | 2024-09-02 |
| C_0001 | Pulley Stepper GT2-6 timing belt pulley 20T ID 5mm |  |
1 | 2 | 2024-10-03 |
| C_0002 | Nema17 stepper motor 48mm A 1.8 degree 42BYGHW811/42HS48-2504 2.5A 5.0kg/cm |  |
1 | 2 | 2025-06-30 |
| C_0003 | Lead Screw M8 Pitch 2 Lead 4mm Length 350mm |  |
2 | 4 | 2025-07-01 |
| C_0005 | Mellow high precision Pulley Free Plane GT2-6mm ID 5mm OD 15mm x 10mm (No teeth) |  |
2 | 2 | 2024-10-03 |
| C_0006 | Open Belt GT2-6mm 2000mm |  |
2 | 2 | 2024-10-03 |
| C_0013 | Horizonal mechnical endstop |  |
6 | 2 | 2025-06-30 |
| C_0018 | Power source 600w LRS-600-24 |  |
1 | 2 | 2025-06-30 |
| C_0019 | Air blower fan 5015 24V |  |
4 | 2 | 2025-06-30 |
| C_0024 | Insert M5 |  |
1 | 2 | 2024-10-03 |
| C_0026 | Steel Rod Smooth 10mm 390mm |  |
2 | 2 | 2024-10-03 |
| C_0027 | Steel Rod Smooth 10mm 394mm |  |
2 | 3 | 2024-10-03 |
| C_0031 | Anti Warp Belt |  |
2 | 2 | 2025-06-18 |
| C_0029 | Steel Rod Smooth 10mm 390mm |  |
3 | 3 | 2024-10-03 |
| C_0041 | Spring creality bed 25mm |  |
4 | 3 | 2025-06-20 |
| C_0046 | Steel Rod Smooth 10mm 410mm |  |
1 | 2 | 2024-10-03 |
| C_0050 | Power switch and connector AC |  |
1 | 4 | 2025-07-01 |
| C_0054 | Rubber Compressor Foot for Voron V2.4 (D48 x H18mm) |  |
4 | 2 | 2024-10-03 |
| C_0055 | Control board BTT octopus |  |
1 | 2 | 2025-06-30 |
| C_0056 | Raspberry Pi 4 1GB |  |
1 | 3 | 2025-06-30 |
| C_0093 | Bottom Acrylic Panel Black Matte |  |
1 | 3 | 2025-07-01 |
| C_0100 | Pulley Free Plane GT2-6mm 20T ID 5mm (No teeth) |  |
6 | 2 | 2024-10-03 |
| C_0141 | Superlab heater cartridge 6x20mm 24V 100W |  |
1 | 1 | 2025-06-30 |
| C_0144 | NTC 100k thermistor with 2pin |  |
1 | 3 | 2025-06-30 |
| C_0142 | Heat block socket |  |
1 | 4 | 2025-07-01 |
| C_0143 | Accelerometer ADXL345 |  |
1 | 1 | 2025-06-30 |
| C_0131 | Aluminum Profile Core XY Front |  |
1 | 2 | 2025-06-25 |
| C_0130 | Aluminum Profile Core XY Lateral | |
2 | 2 | 2025-06-25 |
| C_0112 | Aluminum Profile Top Front/Rear |  |
2 | 3 | 2025-06-24 |
| C_0111 | Aluminum Profile Top Lateral | |
2 | 3 | 2025-06-24 |
| C_0113 | Aluminum Profile Structure Middle | |
3 | 3 | 2025-06-24 |
| C_0117 | Aluminum Profile Rear | |
2 | 3 | 2025-06-24 |
| C_0114 | Aluminum Profile Structure Front | |
2 | 3 | 2025-06-24 |
| C_0115 | Aluminum Profile Structure Rear Left | |
1 | 3 | 2025-06-24 |
| C_0116 | Aluminum Profile Structure Rear Right | |
1 | 3 | 2025-06-24 |
| C_0110 | Nema17 stepper motor 40mm length 1.8 degree BYGHW609 A 1.7A 4.2kg.com (Customized Rod 9mm) |  |
4 | 2 | 2025-06-30 |
| C_0106 | Spring Belt Tensioner GT2-6mm |  |
1 | 1 | 2024-10-05 |
| C_0121 | Aluminum Profile Bottom Frame Front | |
1 | 2 | 2025-06-23 |
| C_0120 | Aluminum Profile Bottom Frame Rear | |
1 | 2 | 2025-06-23 |
| C_0119 | Aluminum Profile Bottom Frame Lateral | |
2 | 2 | 2025-06-23 |
| C_0122 | Aluminum Profile Bottom Frame Acrylic | |
2 | 2 | 2025-06-23 |
| C_0137 | Aluminum Profile Bed | |
2 | 3 | 2025-06-23 |
| C_0109 | Foil Isulator |  |
1 | 2 | 2025-06-20 |
| C_0132 | Aluminum Profile Reinforce Belt Bed | |
2 | 2 | 2025-06-23 |
| C_0146 | GE5C Bearing |  |
3 | 1 | 2024-10-09 |
| C_0126 | Right Acrylic Panel Black Matte |  |
1 | 2 | 2025-07-01 |
| C_0125 | Left Acrylic Panel Black Matte |  |
1 | 2 | 2025-07-01 |
| C_0124 | Door Acrylic Panel Transparent |  |
1 | 1 | 2024-10-09 |
| C_0123 | Front Acrylic Panel Black Matte |  |
1 | 2 | 2025-07-01 |
| C_0129 | Top Acrylic Panel Transparent |  |
1 | 2 | 2025-07-01 |
| C_0128 | Electronic Acrylic Panel Black Matte |  |
1 | 2 | 2025-07-01 |
| C_0127 | Rear Acrylic Panel Black Matte |  |
1 | 2 | 2025-07-01 |
| C_0057 | BTT TMC2209 V1.3 Stepper Motor Driver |  |
8 | 1 | 2025-06-30 |
| C_0148 | Wiring Cover Acrylic Panel Black |  |
1 | 1 | 2024-12-09 |
| C_0145 | Fixed Coupling 5x8mm |  |
3 | 2 | 2024-12-11 |
| C_0147 | Commercial Chain |  |
1 | 2 | 2025-06-30 |
| C_0149 | Power Supply S-25-5 |  |
1 | 1 | 2025-06-30 |
| C_0160 | Spacer Heated Bed |  |
6 | 1 | 2025-06-18 |
| C_0153 | Magnet 8mm |  |
2 | 1 | 2025-06-20 |
| C_0012 | Nozzle wiper |  |
1 | 1 | 2025-06-25 |
| C_0161 | Sunon Fan 4010 24V |  |
6 | 2 | 2025-06-30 |

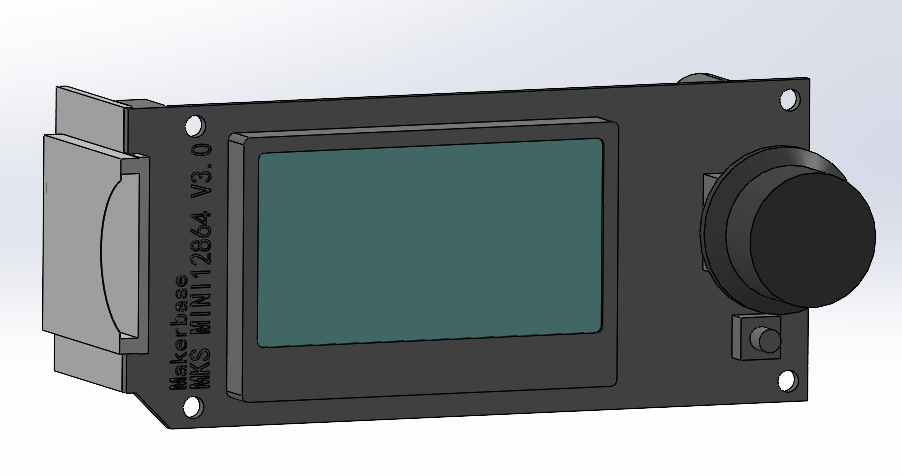

| C_0154 | MKS Mini12864 V3.0 LCD Display |  |
1 | 1 | 2025-06-30 |
| C_0162 | Activated carbon air filter for Bambu X1 P1 series |  |
1 | 1 | 2025-07-01 |
| C_0010 | Fan 3010 24v |  |
1 | 2 | 2025-06-30 |
| C_0048 | Microswitch D2FL |  |
2 | 2 | 2025-06-30 |
