Crafter M6 Información de Construcción
2413 gramos
85.19 horas
| Número de Parte | Nombre | Imagen | Cantidad | Versión | Última Actualización |
|---|---|---|---|---|---|
| C_0090 | M3x5x4 threaded heat set insert |  |
126 | 6 | 2024-10-03 |
| C_0044 | Piezo electric 27mm |  |
1 | 2 | 2024-09-07 |
| C_0036 | Heated bed 24V MK42 PCB heatbed 254*250*3mm |  |
1 | 2 | 2024-09-07 |
| C_0134 | Left Frame Print Belt Rollers |  |
1 | 4 | 2024-10-09 |
| C_0135 | Right Frame Print Belt Rollers |  |
1 | 3 | 2024-10-09 |
| C_0040 | Rollers Motion 50 x 252mm |  |
2 | 2 | 2024-09-07 |
| C_0037 | 3D-Smooth rods M12 x 300mm |  |
1 | 2 | 2024-09-07 |
| C_0045 | 6001ZZ bearing, 28*12*8mm |  |
4 | 2 | 2024-09-07 |
| C_0023 | Insert M4x6x6 |  |
20 | 3 | 2024-10-03 |
| C_0104 | 3D-Smooth rods M12 x 327mm Mechanized |  |
1 | 2 | 2024-09-07 |
| C_0039 | Belt Close GT2-6mm 350mm |  |
1 | 2 | 2024-09-07 |
| C_0042 | Print Belt 250x856mm |  |
1 | 2 | 2024-09-07 |
| C_0107 | MG17-G10 reducer 1:10 |  |
1 | 2 | 2024-10-09 |
| C_0043 | GT2-6mm timing belt pulley 36T 8mm inner bor |  |
1 | 2 | 2024-09-07 |
| C_0136 | Bottom Print Belt Frame |  |
1 | 2 | 2024-10-09 |
| C_0015 | Bearings Linear Rods 10mm 55mm LM10LUU |  |
7 | 4 | 2024-10-03 |
| C_0034 | LMK10UU square flange linear ball bearing |  |
4 | 3 | 2024-10-03 |
| C_0004 | Brass nut for T8 lead screw - lead 8mm |  |
3 | 3 | 2024-10-03 |
| C_0091 | 688ZZ 8x16x5mm ball bearing |  |
3 | 3 | 2024-10-03 |
| C_0033 | Lead Screw M8 Pitch 2 Lead 8mm Length 510mm |  |
1 | 7 | 2024-10-03 |
| C_0032 | Steel Rod Smooth 10mm 550mm |  |
2 | 4 | 2024-10-03 |

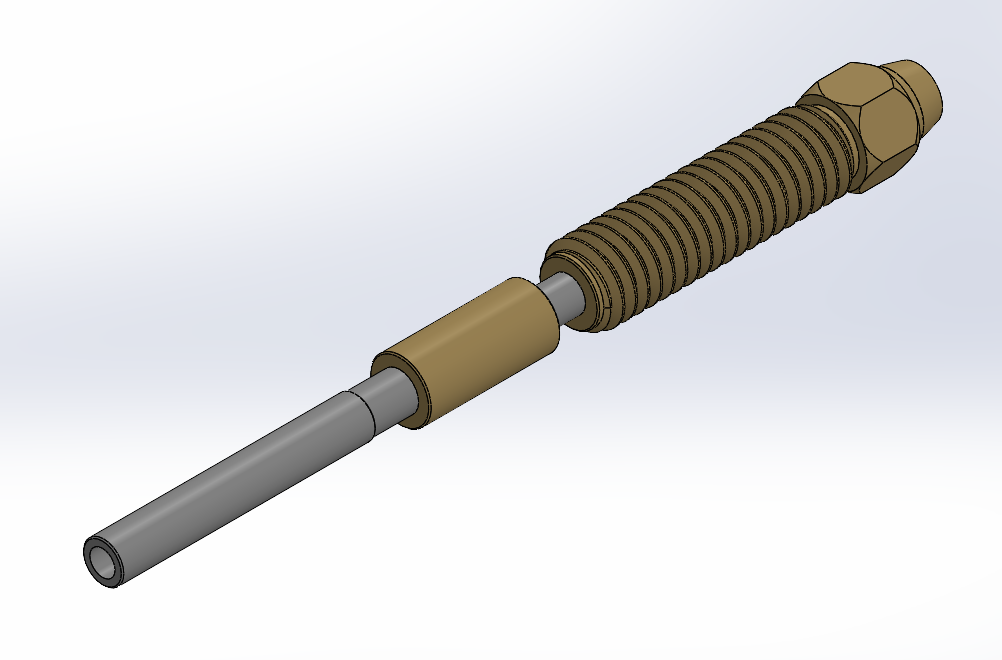

| C_0011 | Nozzle 0,4 high flow cht |  |
1 | 2 | 2024-10-03 |
| C_0014 | Cable Chain Bridge type openable style R18 10*15mm |  |
1 | 2 | 2024-10-03 |
| C_0047 | Blade Cutter 0,5mm |  |
1 | 1 | 2024-09-02 |
| C_0049 | Steel ball 4mm diameter |  |
1 | 3 | 2024-10-03 |
| C_0052 | Fiting pneumatic 4mm ECAS04 |  |
1 | 2 | 2024-10-03 |
| C_0105 | spring C01480230500M |  |
1 | 1 | 2024-09-02 |

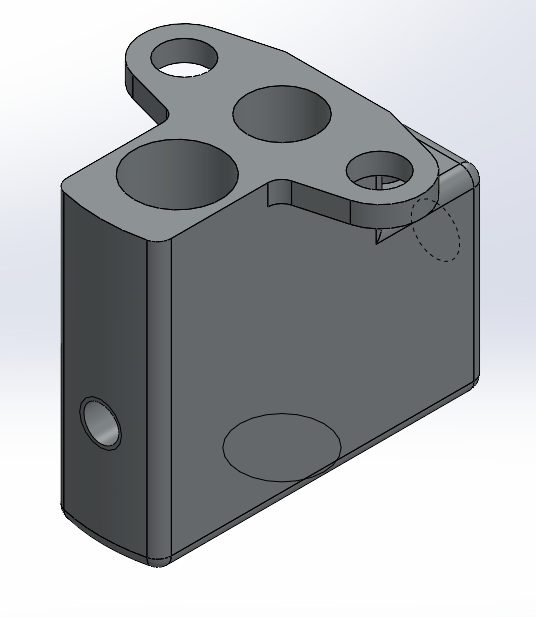

| C_0138 | Print head heat block |  |
1 | 1 | 2024-09-02 |

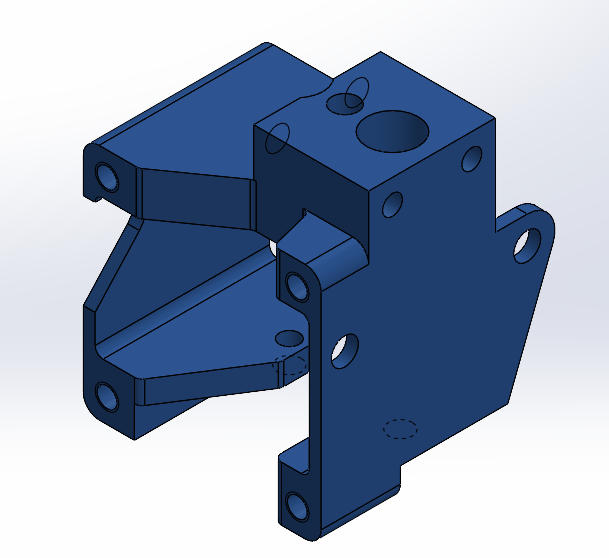

| C_0139 | Print head heat sink |  |
1 | 1 | 2024-09-02 |
| C_0140 | BMG Extruder components kit (with black hardened steel gears) |  |
1 | 1 | 2024-09-02 |
| C_0001 | Pulley Stepper GT2-6 timing belt pulley 20T ID 5mm |  |
1 | 2 | 2024-10-03 |
| C_0003 | Lead Screw M8 Pitch 2 Lead 8mm Length 350mm |  |
2 | 3 | 2024-10-03 |
| C_0005 | Mellow high precision Pulley Free Plane GT2-6mm ID 5mm OD 15mm x 10mm (No teeth) |  |
2 | 2 | 2024-10-03 |
| C_0006 | Open Belt GT2-6mm 2000mm |  |
2 | 2 | 2024-10-03 |
| C_0024 | Insert M5 |  |
1 | 2 | 2024-10-03 |
| C_0026 | Steel Rod Smooth 10mm 390mm |  |
2 | 2 | 2024-10-03 |
| C_0027 | Steel Rod Smooth 10mm 394mm |  |
2 | 3 | 2024-10-03 |
| C_0029 | Steel Rod Smooth 10mm 390mm |  |
2 | 3 | 2024-10-03 |
| C_0046 | Steel Rod Smooth 10mm 410mm |  |
1 | 2 | 2024-10-03 |
| C_0054 | Rubber Compressor Foot for Voron V2.4 (D48 x H18mm) |  |
4 | 2 | 2024-10-03 |
| C_0093 | Bottom Cover Acrylic panel |  |
1 | 2 | 2024-10-03 |
| C_0100 | Pulley Free Plane GT2-6mm 20T ID 5mm (No teeth) |  |
6 | 2 | 2024-10-03 |
| C_0142 | Isulator heatblock |  |
1 | 1 | 2024-09-09 |
| C_0131 | Frame Core XY Front |  |
1 | 1 | 2024-09-09 |
| C_0130 | Frame Core XY Side | |
2 | 1 | 2024-09-09 |
| C_0112 | Aluminum Profile 20x20x500mm |  |
2 | 2 | 2024-10-04 |
| C_0111 | Aluminum Profile 20x20x480mm |  |
2 | 2 | 2024-10-04 |
| C_0113 | Aluminum Profile 20x20x460mm |  |
3 | 2 | 2024-10-04 |
| C_0117 | Aluminum Profile 20x20x520mm |  |
2 | 2 | 2024-10-04 |
| C_0118 | Aluminum Profile 20x20x130mm |  |
2 | 2 | 2024-10-04 |
| C_0114 | Aluminum Profile 20x40x520mm |  |
2 | 2 | 2024-10-04 |
| C_0115 | Aluminum Profile 20x40x520mm |  |
1 | 2 | 2024-10-04 |
| C_0116 | Aluminum Profile 20x40x520mm |  |
1 | 2 | 2024-10-04 |
| C_0106 | Spring Belt Tensioner GT2-6mm |  |
1 | 1 | 2024-10-05 |
| C_0121 | Aluminum Profile 20x20x500mm |  |
1 | 1 | 2024-10-06 |
| C_0119 | Aluminum Profile 20x20x480mm | |
2 | 1 | 2024-10-06 |
| C_0122 | Aluminum Profile 20x20x494mm | |
2 | 1 | 2024-10-06 |
| C_0137 | Aluminum Profile 20x20x285mm | |
2 | 1 | 2024-10-09 |
| C_0109 | Foil Isulator | |
1 | 1 | 2024-10-09 |
| C_0132 | Aluminum Profile 20x20x285mm | |
2 | 1 | 2024-10-09 |
| C_0146 | GE5C Bearing |  |
3 | 1 | 2024-10-09 |
| C_0126 | Right Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0125 | Left Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0124 | Door Acrylic Panel Transparent |  |
1 | 1 | 2024-10-09 |
| C_0123 | Front Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0129 | Top Acrylic Panel Transparent |  |
1 | 1 | 2024-10-09 |
| C_0128 | Electronic Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
| C_0127 | Rear Acrylic Panel Black |  |
1 | 1 | 2024-10-09 |
